USRP-LW B205

●  Small in size, highly integrated, RF frequency range covers 70MHz-6GHz

●  Supports maximum real-time bandwidth of 56MHz, 61.44MS/s reference sampling rate

●  Programmable Spartan 6 XC6SLX150 FPGA

●  Open-source UHD supports various frameworks

●  Supports GNU Radio open-source software framework

●  Requires UHD3.9.2 or newer driver version support

●  Supports high-speed USB 3.0 connection with USB power supply

●  GPIO general-purpose interface and JTAG debugging capability

●  Supports 10MHz reference clock or PPS synchronization

Immediate enquiry

Product introduction

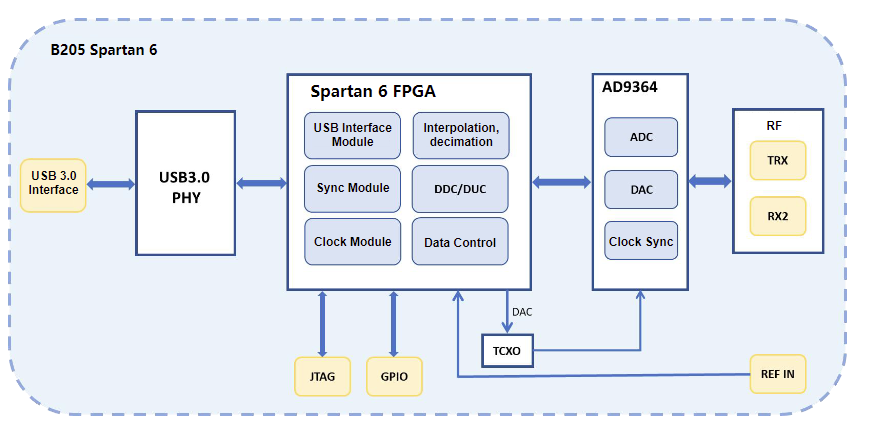

The USRP-LW B205 is a compact, industrial-grade Software-Defined Radio (SDR) device measuring 6.1 × 9.7 × 1.5 cm. It features an industrial-grade, programmable Xilinx Spartan-6 XC6SLX150 FPGA and utilizes the AD9364 RF integrated circuit for its transmitter front-end. This configuration supports an RF range of 70 MHz to 6 GHz and provides an instantaneous bandwidth of 56 MHz, making it a high-performance and cost-effective one-port transceiver.

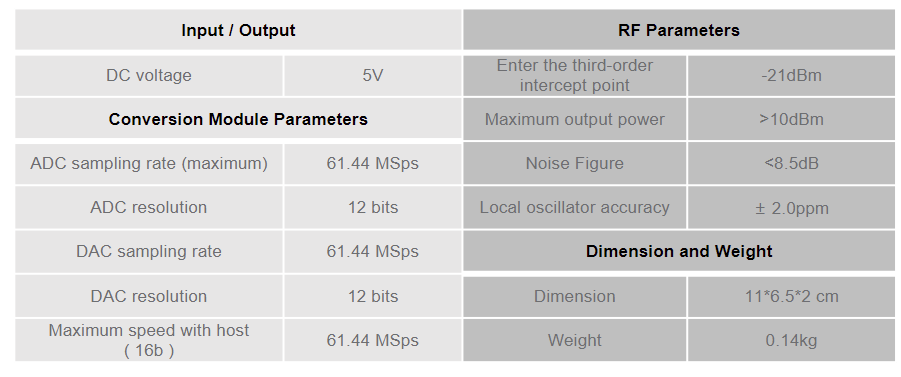

Technical parameter

Input/Output

RF Performance Parameters

DC Voltage Input

5V

IIP3

-21dBm

Convert Module Parameters

Output Power

>9dBm

ADC Sampling Rate (Max)

61.44 MSps

Noise Figure

<8dB

ADC Resolution

12 bits

Local Oscillator Accuracy

±2.0ppm

DAC Sampling Rate

61.44 MSps

Physical Properties

DAC Resolution

12 bits

Size

6.1*9.7*1.6 CM

Maximum Tansfer Rate With Host (16b)

61.44 MSps

Weight

115.0g
